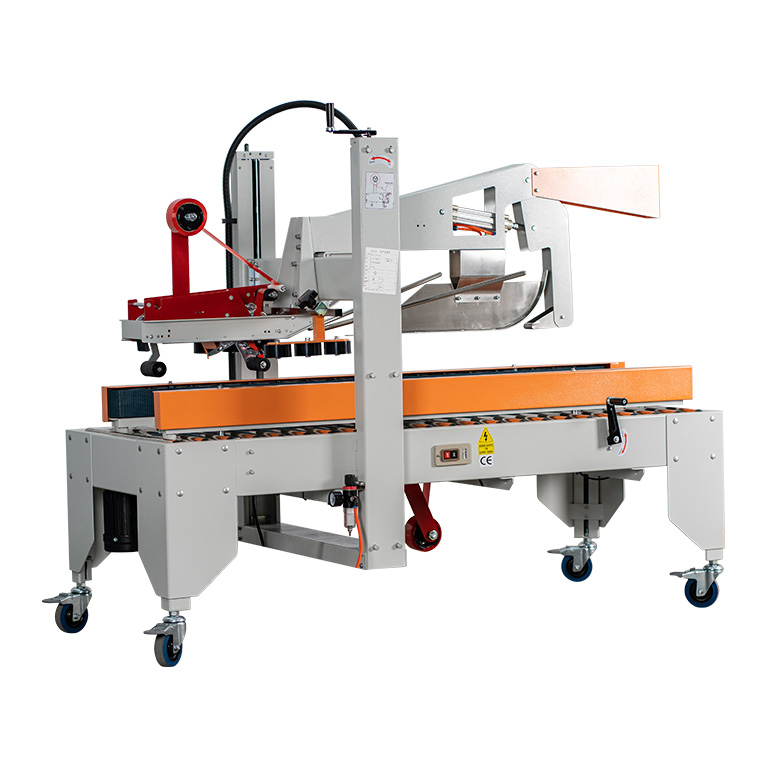

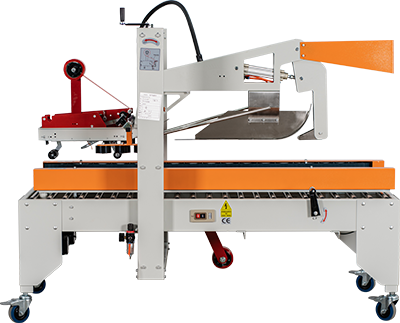

Automatic-folding-and-sealing-machine

Automatic folding and sealing machine, automatically folds the lid, and automatically sticks tape on the top and bottom, without manual operation; it uses instant tape to seal the carton, the sealing effect is flat and beautiful, the sealing is firm, it can be operated alone or in conjunction with an automated packaging line.

Widely used in food, medicine, beverage, tobacco, daily chemicals, automobiles, cables, electronics and other industries.

Reservation Now

CHARACTERISTICS

· Self-adjusting height and width:

Manually adjust the width and height of the machine according to the carton specifications, suitable for sealing c·artons of the same specifications in the same period;

· Beautiful sealing:

Pneumatic sealing, fast and beautiful;

· Save labor:

Goods packaging operations are completed by machines instead of manual labor;

· Improve efficiency:

Stable sealing speed, higher efficiency;

· Simple operation:

Simple operation panel, economical, durable, safe, and low failure rate.

PARAMETERS

Model	GPC-50D
Conveyor speed	18m/min
Carton range	Length:200-600mm Width:150-500mm Height: 150-500mm
Single/3 phase, voltage, frequency	110/220V 50/60Hz 1Phase
Power	400W
Tape size	48/60/75mm(choose one）
Air consumption	50NL/min
Required air pressure	0.6Mpa
Table height	600+150mm
Machine size	Length:1770mm Width:850mm Height:1520mn
Machine weight	250kg

Details display

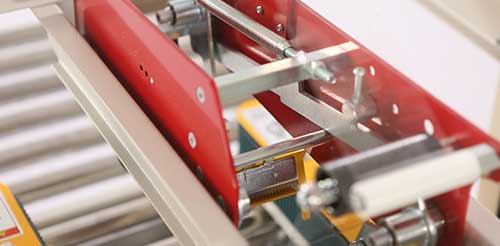

	Quick tape installation design Just grab the tape arm to easily remove the movement, convenient and quickinstallation of tape, simple operation

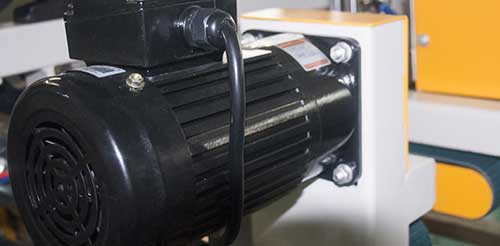

Selected configuration, stable and durable Selected powerful motor to ensure stable and smooth sealing operation of the whole machine

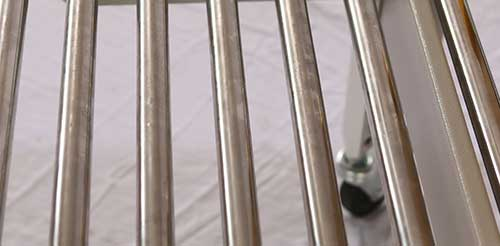

	Stainless steel roller Durable and rust-free, good load-bearing capacity
Width and height can be adjusted automatically Width and height can be manually adjusted according to carton specifications, simple and convenient operation

	Cylinder control Use Airtac cylinder to control the movement and folding mechanism, reduce the resistance of folding and sealing, and pack conveniently and smoothly. It can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.

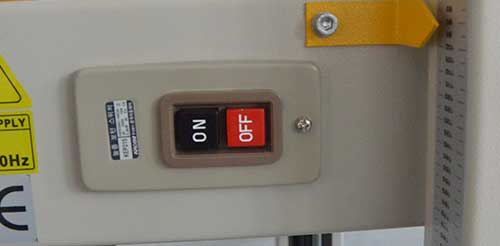

Power switch Use a cost-effective power switch, and the service life of the key switch can reach 100,000 times

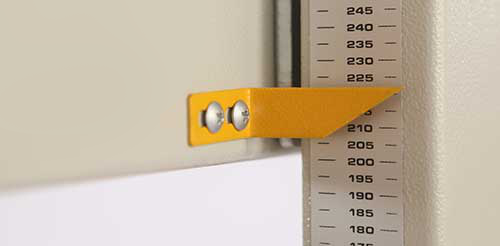

	Scale ruler Equipped with a height ruler for user adjustment
Sealing effect Tape glues the carton, no skew, no bubbles, beautiful and neat
