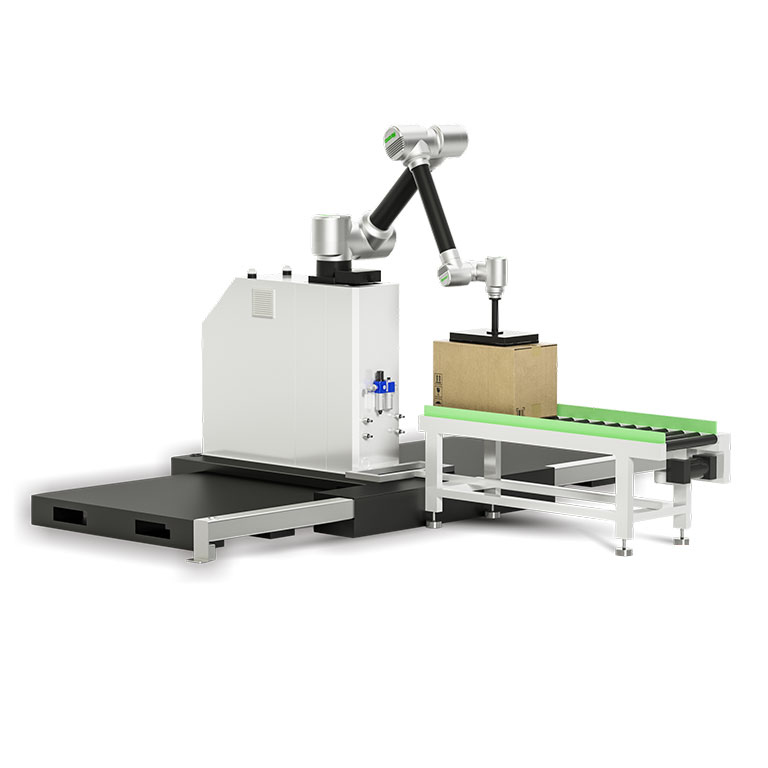

25kg Collaborative palletizing

International first-class heavy-load cooperative robot, safe, efficient and cost.
effective.

Easy to operate：Visual programming is simple and efficient, and ordinary employees can easily manipulate robots without having to master the programming language.

Flexible deployment：Integrated design, light and flexible, small footprint area;

Wide Applications：Widely used in food, pharmaceutics, 3C, daily chemistry, e-commerce and other industries;

Reservation Now

Product Parameters

Model	WSC-MD12G	WSC-MD12S
Load	12kg	12kg
Working radius	1900mm	1900mm
Vertical distance	HI=1700mm	H2=2400mm
Stacking speed	6-12 pcs/min	6-12 pcs/min
Repeated positioning accuracy	±0.04mm	±0.04mm
Communication mode	TCP/IP	TCP/IP
Level Ip	Ip54	Ip54
Temperature Range	0-55℃	0-55℃
Maximum Power Dissipation	2.5kw	3.3kw
Power supply from electric box	220v / 50HZ	220v / 50HZ
Whole machine weight	≈260kg	≈300kg
Floor area	1505*1716mm	1505*1716mm
