Automation solution provider with industrial robots as core technology

Warsoncodt：

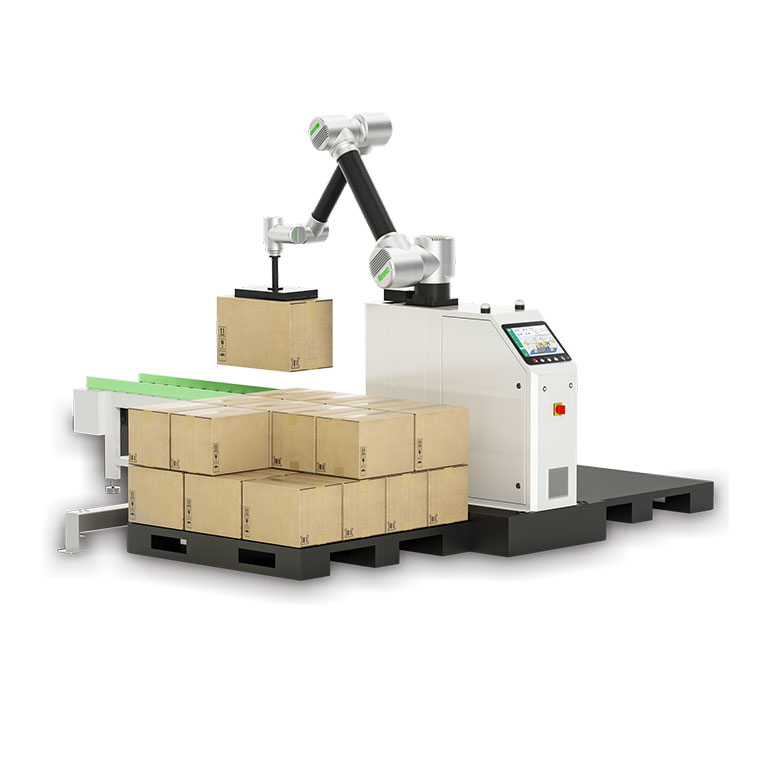

20kg Collaborative palletizing

International first-class heavy-load cooperative robot, safe, efficient and costeffective.

Easy to operate：Visual programming is simple and efficient, and ordinary employees can easily manipulate robots without having to master the programming language.

Flexible deployment：Integrated design, light and flexible, small footprint area;

Wide Applications：Widely used in food, pharmaceutics, 3C, daily chemistry, e-commerce and other industries;

Reservation Now

Product Parameters

Model	WSC-MD20G	WSC-MD20S
Load	20kg	20kg
Working radius	2200mm	1600mm
Vertical distance	HI=2600mm	H2=2100mm
Stacking speed	6-12 pcs/min	6-12 pcs/min
Repeated positioning accuracy	±0.04mm	±0.04mm
Communication mode	TCP/IP	TCP/IP
Level Ip	Ip54	Ip54
Temperature Range	0-55℃	0-55℃
Maximum Power Dissipation	2.5kw	3.3kw
Power supply from electric box	220v / 50HZ	220v / 50HZ
Whole machine weight	≈260kg	≈300kg
Floor area	1505*1716mm	1505*1716mm
